Mobile Columns
Mobile columns add flexibility and versatility to your operation

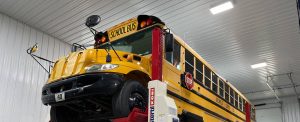

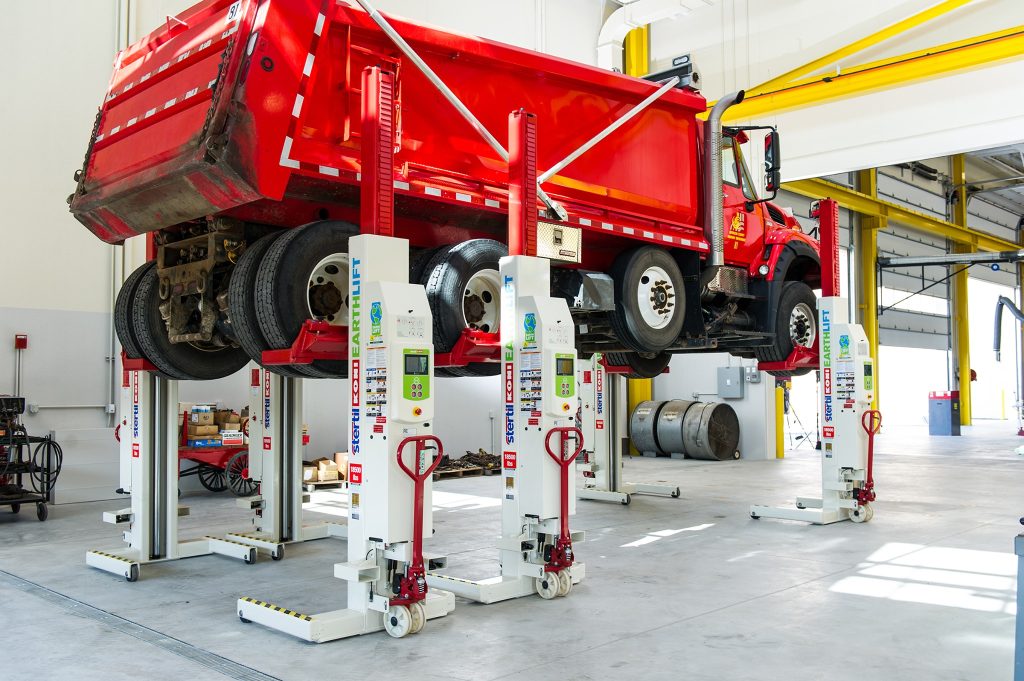

Mobile Column Lifts from Stertil-Koni allow you to safely lift a wide range of heavy duty vehicles quickly and efficiently. From delivery vans and pumper trucks to school buses and fire engines, from agricultural vehicles and airport tugs to class 8 tractor trailers and utility trucks, we lift them all. Lifting capacities range from 14,000 lbs. to 40,000 lbs. per column.
- Available in Wireless, Cabled and EARTHLIFT models
- Rapid lifting and lowering every time
- Maximum strength with high tensile DOMEX steel
- Full-color touch screen controls on all models
- Super safe mechanical locking system as standard
- Overload protection and synchronization as standard
- Adjustable pick-up forks
More about mobile column lifts
Wireless mobile column lifts from Stertil-Koni are a portable and efficient solution for lifting heavy-duty vehicles. These lifts are designed to be safe, secure, and certified, with no need for an external power source or interconnecting communication cables, reducing the risk of operator tripping and minimizing setup time.
Key features of the wireless mobile column lifts include:
- Programmable features and a multi-master system with a control panel on each column, allowing connection of up to 32 columns in a set.
- Capacities per column ranging from 14,000 lbs. to 40,000 lbs.
- A full-color, high-resolution 7” touch screen control panel known as the ebright Smart Control System, making operation user-friendly.
Recharging capability from any 110-volt outlet, ensuring convenience and flexibility.
These mobile column lifts are truly mobile, featuring synthetic wheels and a hydraulic pallet truck mechanism, making them easy to move around and deploy. They also come with patented overload protection and retractable wheels to prevent high point loading, reducing surface pressure by a factor of 10 and minimizing workshop floor damage.
Stertil-Koni’s mobile column lifts are known for their rapid lifting and lowering capabilities, reaching their maximum height of 73 inches in just 94 seconds, making them among the fastest mobile column lifts in the world.
Wireless mobile column lifts from Stertil-Koni offer a versatile and efficient solution for lifting heavy-duty vehicles, providing a range of capacities, advanced control features, and portability, making them a popular choice in the industry.
| Model | ST 1064 | ST 1065 | ST 1075 | ST 1085 | ST 1100 | ST 1130 | ST 1175 |
| Lifting capacity | 14,000lbs. | 14,500lbs. | 16,500lbs. | 18,500lbs. | 22,000lbs. | 29,000lbs. | 40,000lbs. |
| Lift system | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Lifting height | 73 in | 73 in | 73 in | 73 in | 73 in | 81 in | 81 in |
| Lifting time | 75 sec | 75 sec | 94 sec | 94 sec | 215 sec | 215 sec | |
| Column height | 97 in | 97 in | 97 in | 97 in | 97 in | 132 in | 132 in |
DOWNLOAD BROCHURES AND SPECS SHEETS BELOW
866-471-8847
WOULD YOU LIKE A FREE DEMO?
Sometimes it is beneficial to try out a set of mobile columns in your shop. We can demonstrate them in your shop and leave them behind for your staff to use. Simply call to scheduled your demo – 800-359-2974.
